Patent: MS01D
Drop arm tunstile is a relatively simple turnstile. There is a cylindrical barrier arm in the middle of the aisle. When the credentials provided by the passers-by are verified, the arm will automatically drop to allow entry.
share:
Advantages Specifications

Drop Arm Turnstile Video:

Drop Arm Turnstile Description:

Drop arm tunstile is a relatively simple turnstile. There is a cylindrical barrier arm in the middle of the aisle. When the credentials provided by the passers-by are verified, the arm will automatically drop to allow entry.
As an entry-level turnstile, the drop arm turnstile is more focused on access control than security enhancement. The chassis on both sides emits invisible infrared light, which is used to detect whether there is an object in the channel.
The open-view design and the arc-shaped chassis at both ends make users feel softer and more intimate.

Drop Arm Turnstile Variations:

Drop Arm Turnstile Variations:

On request, various materials, finishes, sizes, and aisle widths can be modified.
Turnstiles with drop arms are compatible with a variety of door access systems and hardware, including bluetooth readers, biometric readers, badge readers, etc.

Drop Arm Turnstile Applications:

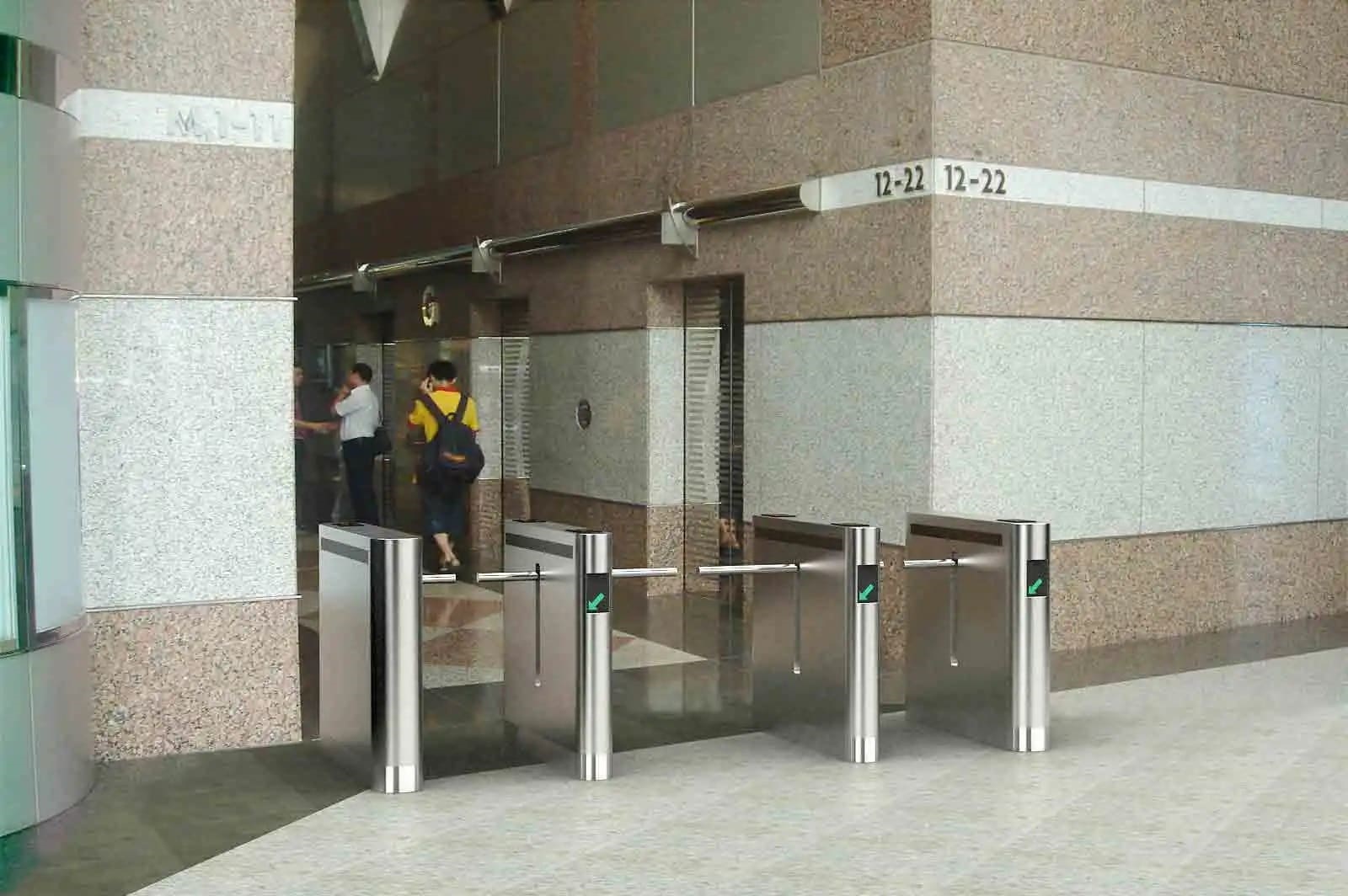

As its block is only a stainless steel arm, the security level is low, so drop arm turnstile is mostly used in occasions with security guards or receptionists, such as hotel receptions, commercial lobbies, amusement park entrances, cinemas, etc. The ADA gate specially designed for Wheelchair users or waker users are also available.

Drop Arm Turnstile Dimension:

drop arm turnstile dimension
Model No. MS01D
Cabinet Material SUS304/316 stainless steel
Arm Material SUS304/316 stainless steel
Unit Dimension(W*L*H) 1200*168*1000mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor 4 Pairs
Passage Width 600mm
Opening/Closing 0.5 seconds
Flow Rate 30-35 person/min
Mechanism

Absorption of electromagnet/Motor

Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor(Shelter)
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 8,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
