Patent: MS02Q1

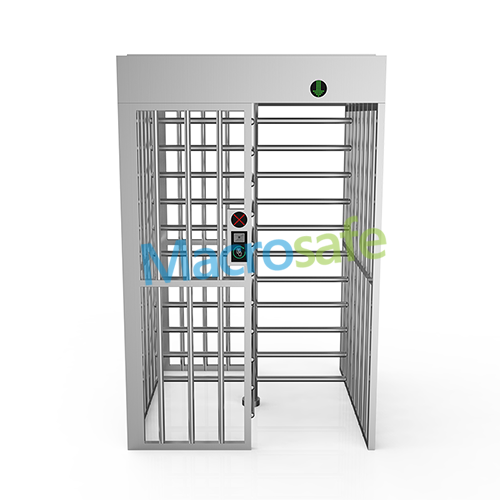

Due to its sturdy structure and economical price, full height turnstiles MS02Q1 are a reliable choice for maximum security control whether used indoors or outdoors. Crawling or climbing is absolutely rejected.
share:
Advantages Specifications

  Full Height Turnstiles Video:





  Full Height Turnstiles Descriptions:

Due to its sturdy structure and economical price, full height turnstiles MS02Q1 is a reliable choice for maximum security control whether used indoors or outdoors. With a strong frame far higher than human, crawling or climbing is absolutely impossible. Mature and stable control technology further reduces maintenance requirements and helps administrators lower operating costs.

  Full Height Turnstiles Assembly Guide:





  Full Height Turnstiles Variations:

With bi-directional operation, one full height turnstile can serve as both an entrance and an exit, reducing the occupation of building space. Uni-directional traffic for separating inlet and outlet is also supported.
In addition to the standard stainless steel finish, a powder-coated finish in a richer color is available

  Full Height Turnstiles Applications:

Full height turnstiles are often used in unattended but high degree of security desired, as well as on some outdoor occasions with tough conditions. Such as chemical plants, crude oil refineries, warehouses, prisons, military control areas, etc.

  Full Height Turnstiles Features:


Runs smoothly, low noise, no mechanical impact;

One person pass at a time, ensuring no tailgating;

Automatic reset function: tripod arm will lock automatically if nobody enter within 5s(Can be set);


Offers maximum security from floor to ceil;

Automatically unlock if power fails;

Can be integrated with any type of access control systems;

Simple installation, operation and maintenance;

  Full Height Turnstiles Dimension:

Full Height Turnstiles

Full Height Turnstiles Gallery:

Maintenance for full height turnstile:

As a type of access gate, full-height gates can easily cause some failures and problems if they are improperly maintained during use. So, how should users maintain and maintain it every day? The daily maintenance of the full-height gate can be divided into three parts: movement maintenance, power supply maintenance, and chassis maintenance. The following is a detailed introduction.



Maintenance of full height turnstiles requires attention:

1. Mechanism maintenance

Before maintaining the full height turnstile mechanism, you'd better cut off the power supply, open the top cover, clean the dust on the surface, and then apply butter on the transmission, remove the motor, and apply butter on the gears and gear grooves. Then fix the motor in the original direction.

2. Power maintenance

Similarly, you need to cut off the power supply of the full height turnstile, and then check whether the plug-in is loose. If there is looseness, you must plug it in and tighten it, and do not change the position of the connecting wire at will; check whether the external power supply of the gate is exposed and whether there is a leakage problem. , if it is exposed, it should be wrapped in time to avoid short-circuit failure of the turnstile;

3. Chassis maintenance

At present, most access gate enclosures are made of 304 stainless steel. Stainless steel will rust after a long time of use. At this time, you can use sandpaper to clean it. When grinding the surface, it should be wiped along the long grain direction, otherwise it will affect the aesthetics of its appearance.

If conditions permit, it is recommended that users spray anti-rust oil on the surface of the channel lock box, especially in places with high humidity or high air acidity, such as seaside, chemical plants, oil refineries, etc.

Only good maintenance can make the full-height gate operate more smoothly and have a longer service life.

Model No. MS02Q1
Cabinet Material SUS304/316 stainless steel
Arm Material SUS304/316 stainless steel
Unit Dimension(W*L*H) 1450*1450*2250mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor None
Passage Width 600mm
Opening/Closing 0.6 seconds
Flow Rate 30-35 person/min
Mechanism

Absorption of electromagnet/Motor

Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 8,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
