Patent: MS02Y

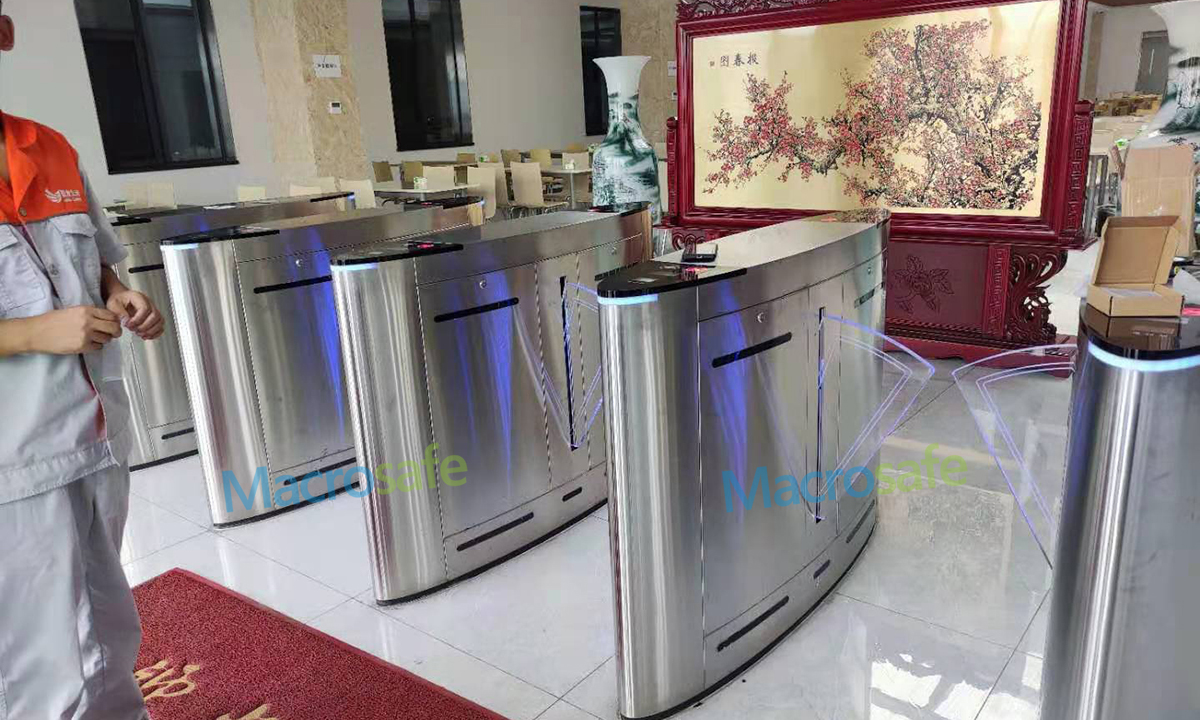

Flap Barrier Gate MS02Y combines high security and aesthetics in this ultra-modern design. The top lid is fully customizable and can be replaced with artificial marble with various patterns and colors to fit your building.
share:
PDF Downloads (Welcome to ask for the file passwords.)
Advantages Specifications Dimension Options Gallery

Flap Barrier Gate Video:

Flap Barrier Gate Description:

Flap barrier gate, also known as flap barrier, is the most common kind of turnstile entry in daily work and life. Sensitive optical detectors in the cabinets ensure a great balance between access restrictions and user safety.
Besides, visual and audible alarms allow users to stop inappropriate behavior in time, and "mechanical anti-pinch" + "infrared anti-pinch" gives double protection for customers.
The top cover of MS02Y is made of black acrylic or black artificial marble, of course, other patterns or materials are available, which is the icing on the cake for your buildings. The oval-shaped housing jumps out of the rigid frame and makes users feel more friendly and intimate.

Flap Barrier Gate Installation Guide:

Flap Barrier Gate Variations:

The top cover is available in different materials or patterns such as stainless steel, acrylic, artificial marble, etc.
The standard length of the case is 1400mm(55 inches), if the installation space is limited, you can also choose 1200mm(47 inches).
Regular passageway width is 600mm, and if it is set to be accessible to the disabled, 900mm (
ADA Compliance) would be provided as well.
Click here to know more about Flap Barrier Gate.

Flap Barrier Gate Applications:

The MS04G has consistently ranked in the top 3 sales of flap barrier gates, thanks to its aesthetically pleasing design and superior security capabilities, as well as the ability to provide fast traffic for up to 40 to 50 people per minute.
It can be easily found in subways, airports, docks, art centers, fitness clubs, railway stations, schools, and other public buildings.

Flap Barrier Gate Features:


Photoelectric sensors detects including unauthorized entry, tailgating , illegal intrusion, reverse intrusion, etc;

Ensure that children pass safely with two of sensors especially for detecting them;

Automatic reset function: swing arms will lock automatically if nobody enter within 5s(Can be set);

Passage width can be chosen 600mm or 900mm,the latter can be applied to wheelchairs and prams;

Swing barriers run smoothly with low noise system;

Automatically open if power fails;

Can be integrated with any type of access control systems;

Simple installation, easy operation and low maintenance;
Model No. MS02Y
Cabinet Material SUS304/316 stainless steel
Swing Material Plexi-glass or tempered glass
Unit Dimension(W*L*H) 1400*300*990mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor 4 pairs (2 for protecting children)
Passage Width 600/900mm
Opening/Closing 0.5 seconds
Flow Rate 35-40 person/min
Mechanism Brushless motor
Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor(Shelter)
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 8,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
Flap Barrier Gate
Flexible configurations available optionally up on request.

01 Cabinet Material
Generally cabinets are made from brushed 304 stainless steel.
The following materials are also available:
02 Cabinet Anti-fingerprint process
Anti-fingerprint steel treatment is based on the original 304 stainless steel, after vacuum coating, forming a layer of bright protective film on the surface also has the function of anti-fingerprint.
03 Cabinet Colors
In addition to the primary color of stainless steel, you can also choose other colors, such as white, black, brown, etc., to make it more coordinated with your building.
04 Glass Etching
Support personalize glass barriers and side panels with etched artwork, logos or directions.
05 Panels Material
You can select plexi-glass or tempered glass for swing panels and/or filter panels.
06 Mechanism
Configured brushless motor by default.
You can choose to upgrade it with servo motor, make it perform even better beyond your expect.
High swing arm(ground clearance≥1.2meter) configured servo motor by default.
07 Custom Illumination
Besides regular LED indicator, static or dynamic lightings hidden in the glass panels are also optional ,which meets the different needs of various occasions.
*More options and customizations available on request.
