Patent: MS02S

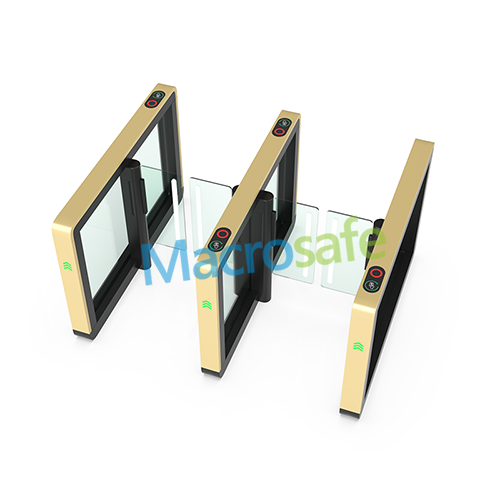

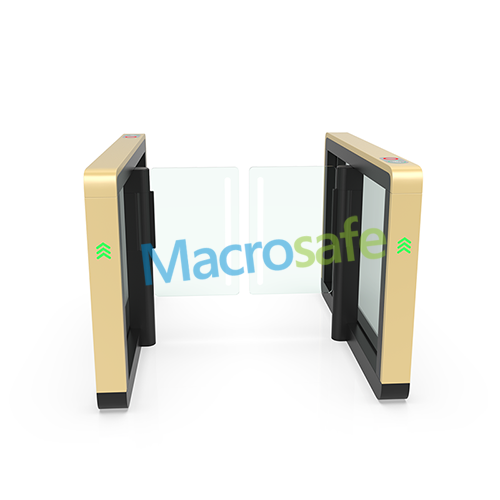

Using top-of-the-line technology, Speed Gate Turnstile MS02S runs smoothly and quietly, while its simple and classic design provides users with a pleasant experience. A variety of customized options are available for lighting guidance.
share:
Advantages Specifications Dimension Options Gallery

Handicap Turnstile Video:

Handicap Turnstile Description:

Handicap turnstile is a kind of turnstile specially designed to provide barrier-free access for people with disabilities, such as people in wheelchair and people who need to use walker or cruthes. According to ADA compliance, the opening width of the handicap turnstile needs to be at least 32 inches in order to ensure smooth passage of the wheelchair.
While ensuring the safety of the pedestrians, handicap turnstile MS02S also provides ease of access for disabled people in wheelchairs or people who use walkers by providing an unobstructed passage. Its elegant and slender design does occupy a little space. And the long optical detection zone is always detecting the movements of pedestrians, preventing illicit entry and retrograde.

Handicap Turnstile Installation Guide:

Handicap Turnstile Variations:

Handicap turnstiles can be configured to work in one direction or in two directions depending on the needs of the user. Additionally, it can be set up to open the door automatically through infrared induction or equipped with an access control system. The turnstile access control system can also be configured in a variety of ways, such as turnstile gate with face recognition, barcode gate entry system, fingerprint turnstile, or turnstile gate with card reader.

Handicap Turnstile Applications:

Providing a user-friendly experience, handicap turnstile MS02S is at the forefront of modern gate design. This is the perfect solution for all public places that require barrier-free access, such as restaurants, shops, hotels, cultural venues, sports venues, shopping malls, etc.

Handicap Turnstile Features:

Narrow and fasional design;

Photoelectric sensors detects including unauthorized entry, tailgating , illegal intrusion, reverse intrusion, etc;

With servo brushless motor, MCBF of it up to 10 millions;

Different heights of glass available to prevent pedestrians from climbing over;

Short opening time of 0.3 seconds for a high throughflow frequency;

Audible & visible alerts when detect unauthorized entry;

Passage width from 600-900mm, suitable for wheelchairs and prams;

Various LED indicators clearly show the passage direction and status;

Can be integrated with any type of access control systems;

Simple installation, operation and maintenance;



Model No. MS02S
Cabinet Material SUS304/316 stainless steel
Swing Material Plexi-glass or Tempered glass
Unit Dimension(W*L*H) 1400*120*1000mm
Glass height(from floor) 900-1600mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor 8 pairs
Passage Width 600-900mm
Opening/Closing 0.3 seconds
Flow Rate 45-50 person/min
Mechanism Brushless motor/Servo motor
Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor(Shelter)
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 10,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
Flexible configurations available optionally up on request.

01 Cabinet Material
Generally cabinets are made from brushed 304 stainless steel.
The following materials are also available:
02 Cabinet Anti-fingerprint process
Anti-fingerprint steel treatment is based on the original 304 stainless steel, after vacuum coating, forming a layer of bright protective film on the surface also has the function of anti-fingerprint.
03 Cabinet Colors
In addition to the primary color of stainless steel, you can also choose other colors, such as white, black, brown, etc., to make it more coordinated with your building.
04 Glass Etching
Support personalize glass barriers and side panels with etched artwork, logos or directions.
05 Panels Material
You can select plexi-glass or tempered glass for swing panels and/or filter panels.
06 Mechanism
Configured brushless motor by default.
You can choose to upgrade it with servo motor, make it perform even better beyond your expect.
High swing arm(ground clearance≥1.2meter) configured servo motor by default.
07 Custom Illumination
Besides regular LED indicator, static or dynamic lightings hidden in the glass panels are also optional ,which meets the different needs of various occasions.
*More options and customizations available on request.
