Patent: MS07S
Up to 1.6 meter height tempered glass swings, the MS05S sliding speed gate is a perfect solution for entrances where require absolute safety. And its streamlined arc design and intuitive lighting guidance greatly enhance the user's aesthetic pleasure.
Advantages Specifications Dimension Options Gallery

Pedestrian Swing Gate Description:

A pedestrian swing gate is a type of gate that used to control the pedestrian flow and to guide pedestrians to enter designated buildings or areas more efficiently.

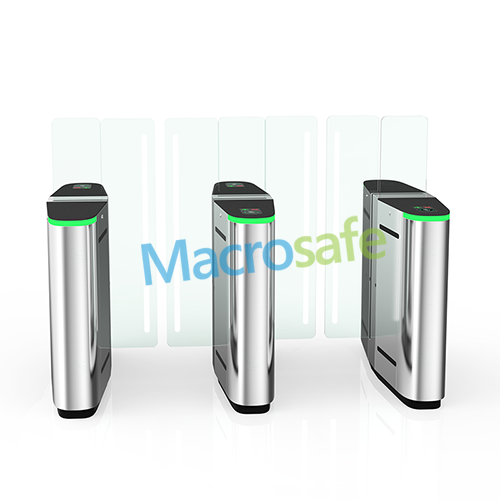

MS07S pedestrian swing gate uses state-of-the-art photodetector and actuation technology, allowing the ultra-high tempered glass barrier to open and close quickly, smoothly, quietly and accurately, with maximum safety. It is impossible for anyone to try to climb over. The sleek stainless steel body strikes a good balance between sturdiness and elegance. Various access control readers can be added according to project needs.

Pedestrian Swing Gate Variations:

The height of the glass barrier can be determined according to the required security level of the building;
Passage widths of turnstile entrance are also available in standard and ADA compliant;
Finishes available in standard brushed stainless steel or powder coated;

Pedestrian Swing Gate Applications:

Using imported servo motor and sturdy and wear-resistant movement structure, with slender casing and elegant design make MS01S very suitable for pedestrian flow control in some high-end occasions, such as government agencies, high-level clubs, financial buildings, airports, exhibition centers, corporate headquarters, etc.

Pedestrian Swing Gate Features:

Photoelectric sensors detect including unauthorized entry, tailgating , illegal intrusion, reverse intrusion, etc;
With servo brushless motor, MCBF of it up to 10 millions;
Different height of glass available to prevent pedestrians from climbing over;
Short opening time of 0.3 seconds for a high throughflow frequency;
Audible & visible alerts when detecting unauthorized entry;
Passage width from 600-900mm, suitable for wheelchairs and prams;
Various LED indicators clearly show the passage direction and status;
Can be integrated with any type of access control systems;
Simple installation, operation and maintenance;


Model No. MS05S
Cabinet Material SUS304/316 stainless steel
Swing Material Plexi-glass or Tempered glass
Unit Dimension(W*L*H) 1400*310*980mm/1400*500*980mm
Glass height(from floor) 1400-1600mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor 5 pairs
Passage Width 600/900mm
Opening/Closing 0.3 seconds
Flow Rate 45-50 person/min
Mechanism Brushless motor
Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor(Shelter)
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 8,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
Flexible configurations available optionally up on request.
01 Cabinet Material
Generally cabinets are made from brushed 304 stainless steel.
The following materials are also available:
02 Cabinet Anti-fingerprint process
Anti-fingerprint steel treatment is based on the original 304 stainless steel, after vacuum coating, forming a layer of bright protective film on the surface also has the function of anti-fingerprint.
03 Cabinet Colors
In addition to the primary color of stainless steel, you can also choose other colors, such as white, black, brown, etc., to make it more coordinated with your building.
04 Glass Etching
Support personalize glass barriers and side panels with etched artwork, logos or directions.
05 Panels Material
You can select plexi-glass or tempered glass for swing panels and/or filter panels.
06 Mechanism
Configured brushless motor by default.
You can choose to upgrade it with servo motor, make it perform even better beyond your expect.
High swing arm(ground clearance≥1.2meter) configured servo motor by default.
07 Custom Illumination
Besides regular LED indicator, static or dynamic lightings hidden in the glass panels are also optional ,which meets the different needs of various occasions.
*More options and customizations available on request.
