Patent: MS05G
Security turnstile gate MS05G tripod turnstile has overturned people's traditional impression of tripod turnstile, and greatly improved the comfort of users while maintaining an irresistible preferential price.
share:
Advantages Specifications Dimension Options Gallery


Security Turnstile Gate Description:

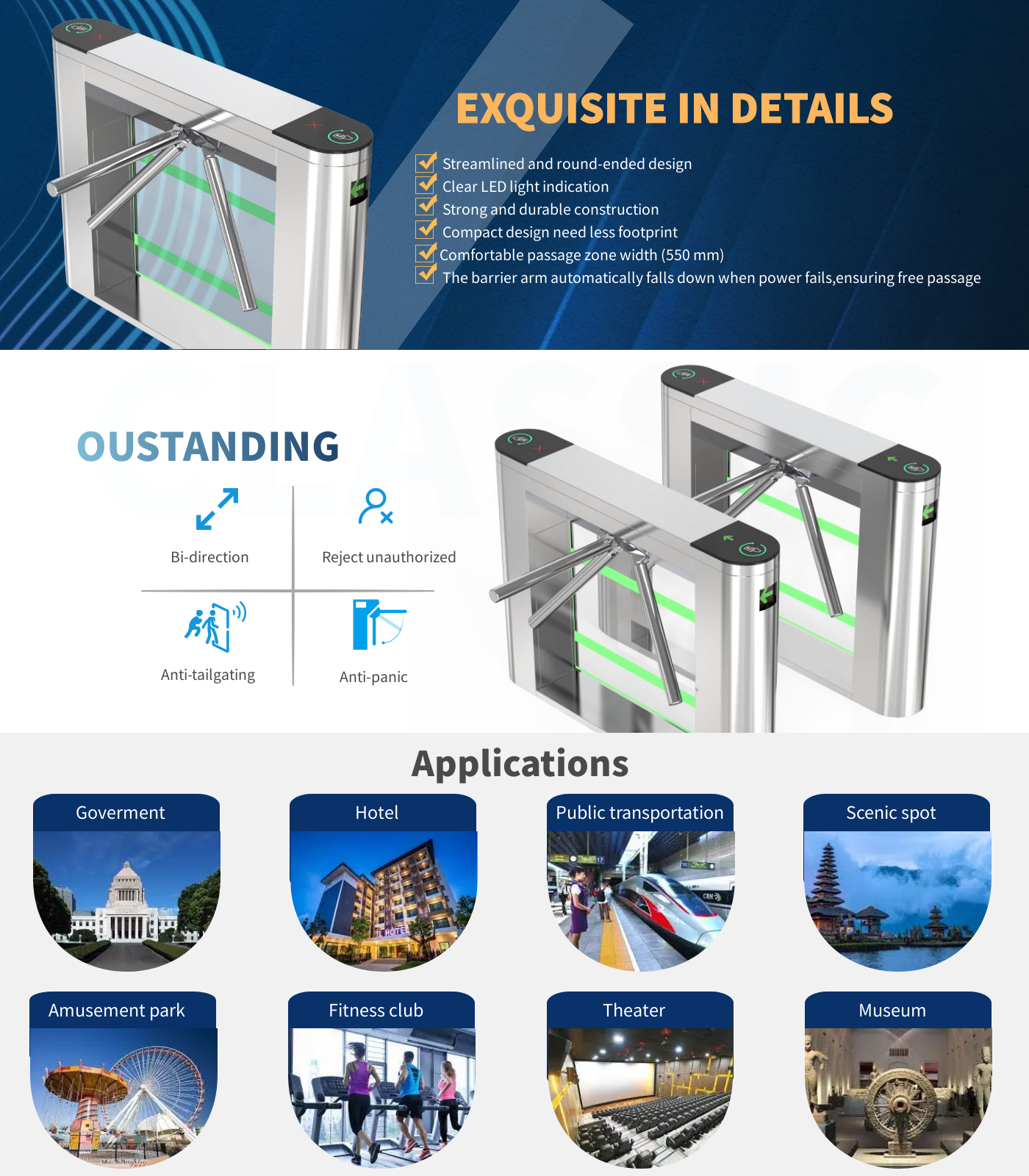

MS05G is a three-arm turnstile with two rounded ends. Compared with most three-arm turnstiles on the market, the MS05G has a slimmer and more compact body, and its unique 120-degree rotating mechanism provides a more comfortable and smooth flow of people. The side of the cabinet is equipped with transparent tempered glass, and the built-in color-changing light indicator further improves the efficiency of personnel management and user-friendliness, which earns high reputation from global users, including integrators and end users. And combined with swing gates of similar design, it can provide passages for large objects, such as wheelchair users, bicycles, strollers, etc., giving users a more intimate experience

Security Turnstile Gate Variations:

Support to be one-way or two-way passage;
Available in various powder coat finishes;



Security Turnstile Gate Applications:

MS05G was developed to provide security in the management area, the barrier arm is locked in a position before receiving valid pass verification, preventing unapproved access. The advanced movement design and control system can provide high-speed traffic, suitable for accommodating a large amount of pedestrian traffic. Therefore, it is often used in theme parks, tourist attractions, shopping malls, offices, fitness venues, hospitals, public transportation systems, etc.

Security Turnstile Gate Features:


The whole system runs smoothly, low noise, no mechanical impact;

One person pass at a time, ensuring no tailgating;

Automatic reset function: tripod arm will lock automatically if nobody enter within 5s(Can be set);


Robust and strong 304 stainless steel cabinet and barrier arm;

Automatically drop arm if power fails

Can be integrated with any type of access control systems;

Simple installation, easy operation and low maintenance;
Model No. MS05G
Cabinet Material SUS304/316 stainless steel
Arm Material SUS304/316 stainless steel
Unit Dimension(W*L*H) 1314*225*1000mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor None
Passage Width 550mm
Opening/Closing 0.5 seconds
Flow Rate 30-35 person/min
Mechanism

Absorption of electromagnet/Motor

Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor(Shelter)
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 5,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
Security Turnstile Gate dimension
Flexible configurations available optionally up on request.

01 Cabinet Material
Generally cabinets are made from brushed 304 stainless steel.
The following materials are also available:
02 Cabinet Anti-fingerprint process
Anti-fingerprint steel treatment is based on the original 304 stainless steel, after vacuum coating, forming a layer of bright protective film on the surface also has the function of anti-fingerprint.
03 Cabinet Colors
In addition to the primary color of stainless steel, you can also choose other colors, such as white, black, brown, etc., to make it more coordinated with your building.
04 Glass Etching
Support personalize glass barriers and side panels with etched artwork, logos or directions.
05 Panels Material
You can select plexi-glass or tempered glass for swing panels and/or filter panels.
06 Mechanism
Configured absorption of electromagnet by default.
You can choose to upgrade it with motor.
07 Custom Illumination
Besides regular LED indicator, static or dynamic lightings hidden in the glass panels are also optional ,which meets the different needs of various occasions.
*More options and customizations available on request.
