Patent: MS01B
With the maximum passageway up to 1.2 meter wide and enhanced movement technology which can withstand severe impacts make it perfect solution for the wheelchairs, bicycles and people carrying materials.
Advantages Specifications Dimension Options Gallery

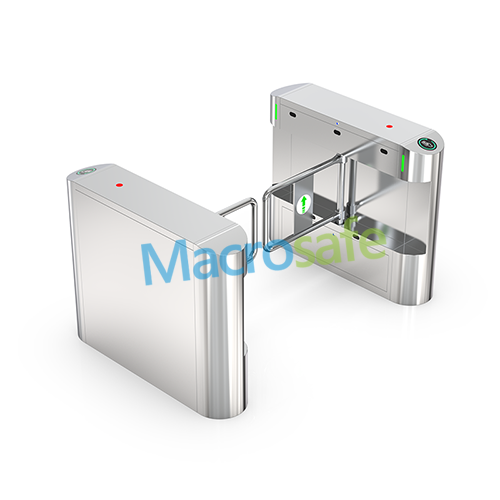

Swing Turnstile Gate Descriptions:

Swing turnstile gate, also called swing barrier and swing barrier gate, it is a kind of turnstile gate with modern and slim design. Rugged stainless steel enclosures and high quality components ensure smooth operation in harsh outdoor environments, ensuring long-term service life.

Implementing the latest technologies and optimal brushless control scheme. Even if they are violently hit, the motor or movement will not be damaged. The barrier is locked in the middle position until the correct biological or card verification signal is received, and the door is opened, otherwise the authorized entry will be rejected.

Swing Turnstile Gate Variations:

Available in powder coat finish in more colour options;
Provides regular 600mm passage, 900mm widened passage which is accessible for people in wheelchairs or baby in spam;
The material of the swings can also choose stainless steel or plexiglass;

Swing Turnstile Gate Applications:

Adjustable aisle width and strong frame make MS01B swing turnstile gate suitable for a variety of places, including but not limited to, hospitals, shops, customs ports, sports facilities (such as basketball courts, gyms, etc.), as well as factories, industrial parks and more.
Photoelectric sensors detect including unauthorized entry, tailgating , illegal intrusion, reverse intrusion, etc;
Ensure that children pass safely with two of sensors specially for detecting them;
Automatic reset function: swing arms will lock automatically if nobody enters within 5s(Can be set);
Passage width from 600-1100mm, suitable for disabled and trolley access;
Swing barriers run smoothly with low noise system;
With anti-collision movement, swing barriers will reset automatically if they are strong hit by bicycle or trolley;
Can be integrated with any type of access control systems;
Simple installation, operation and maintenance;
Model No. MS01B
Cabinet Material SUS304/316 stainless steel
Swing Material stainless steel or Plexi-glass
Unit Dimension(W*L*H) 1200*280*980mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor 5 pairs (2 for protecting children)
Passage Width 600-1100mm
Opening/Closing 0.6 seconds
Flow Rate 40-45 person/min
Mechanism Brushless motor
Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 8,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
Flexible configurations available optionally up on request.
01 Cabinet Material
Generally cabinets are made from brushed 304 stainless steel.
The following materials are also available:
02 Cabinet Anti-fingerprint process
Anti-fingerprint steel treatment is based on the original 304 stainless steel, after vacuum coating, forming a layer of bright protective film on the surface also has the function of anti-fingerprint.
03 Cabinet Colors
In addition to the primary color of stainless steel, you can also choose other colors, such as white, black, brown, etc., to make it more coordinated with your building.
04 Glass Etching
Support personalize glass barriers and side panels with etched artwork, logos or directions.
05 Panels Material
You can select plexi-glass or tempered glass for swing panels and/or filter panels.
06 Mechanism
Configured brushless motor by default.
You can choose to upgrade it with servo motor, make it perform even better beyond your expect.
High swing arm(ground clearance≥1.2meter) configured servo motor by default.
07 Custom Illumination
Besides regular LED indicator, static or dynamic lightings hidden in the glass panels are also optional ,which meets the different needs of various occasions.
*More options and customizations available on request.
